TikZ

TikZ is the LaTeX drawing language, and it produces figures nothing else here can match for precision: Feynman diagrams, quantum circuits, chemical structures, mathematical plots.

It runs a full TeX engine, which is why it ships disabled and has to be turned on by an administrator.

#What it is good at

• Papers, theses and technical notes.

• Teaching material in physics, chemistry and mathematics.

• Any figure where an approximation would be wrong.

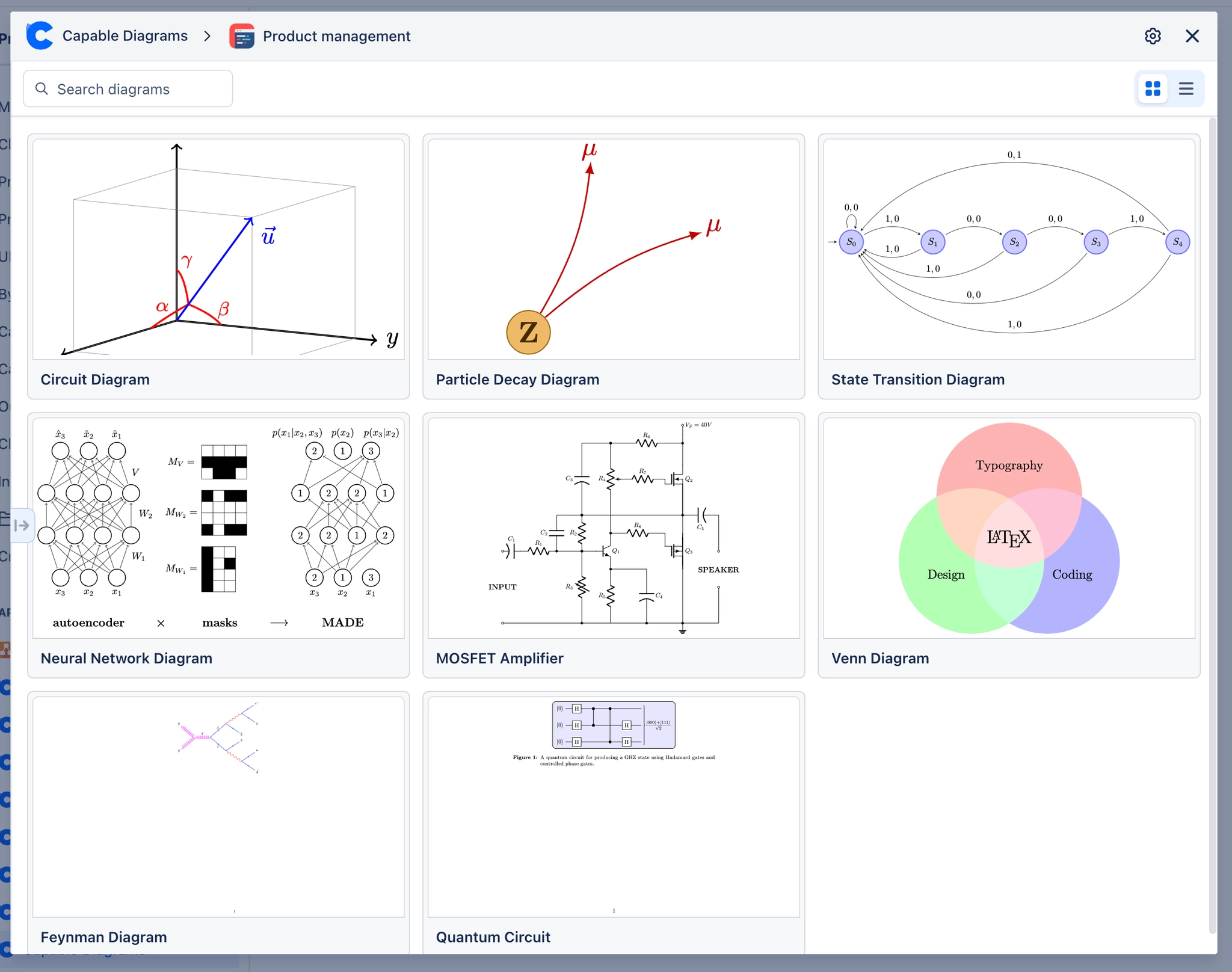

#What it draws

#A worked example

A labelled state machine drawn with TikZ:

The source, which you can paste into a new diagram and edit:

\documentclass[tikz,border=6pt]{standalone}
\usetikzlibrary{automata,positioning}
\begin{document}
\begin{tikzpicture}[shorten >=1pt,node distance=2.8cm,on grid,auto]
  \node[state,initial] (idle) {idle};
  \node[state] (run) [right=of idle] {running};
  \node[state,accepting] (done) [right=of run] {done};
  \path[->]
    (idle) edge node {start} (run)
    (run)  edge node {finish} (done)
    (run)  edge [loop below] node {tick} ()
    (done) edge [bend left] node {reset} (idle);
\end{tikzpicture}
\end{document}

#A few things that catch people out

• TikZ is off by default. An administrator turns it on. See

• Rendering is heavier than any other language here; expect it to take longer.

• Compilation errors come from TeX, so they read like TeX errors rather than diagram errors.
