What you are seeing

You change Corner radius, Gap, Shadow, Border or Thumbnail Height on an image gallery and nothing happens.

#Why it happens

Your gallery is using the Table layout. Those style settings only apply to the Grid layout. Table rows use a small fixed preview (56 px) and their own fixed styling. Only Image fit carries over.

#What to do

Set Layout to Grid if you want those settings to take effect. The Columns control already behaves this way: it disappears when you pick Table.

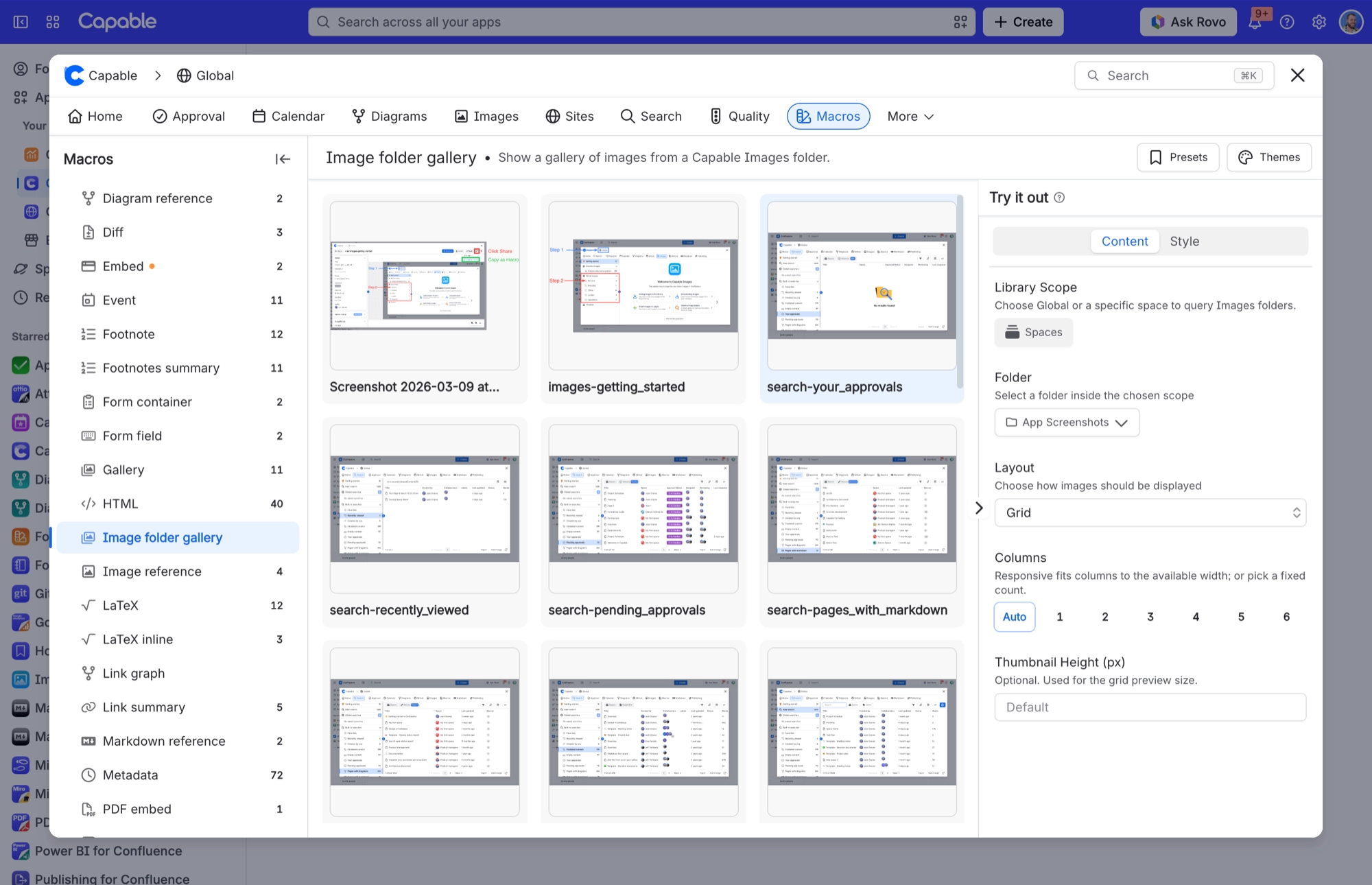

Image folder gallery macro with the Content tab open, showing the Layout menu set to Grid, the Columns choices and Thumbnail Height
Look at the Layout menu on the Content tab. Grid is selected here, so Columns and Thumbnail Height are available.

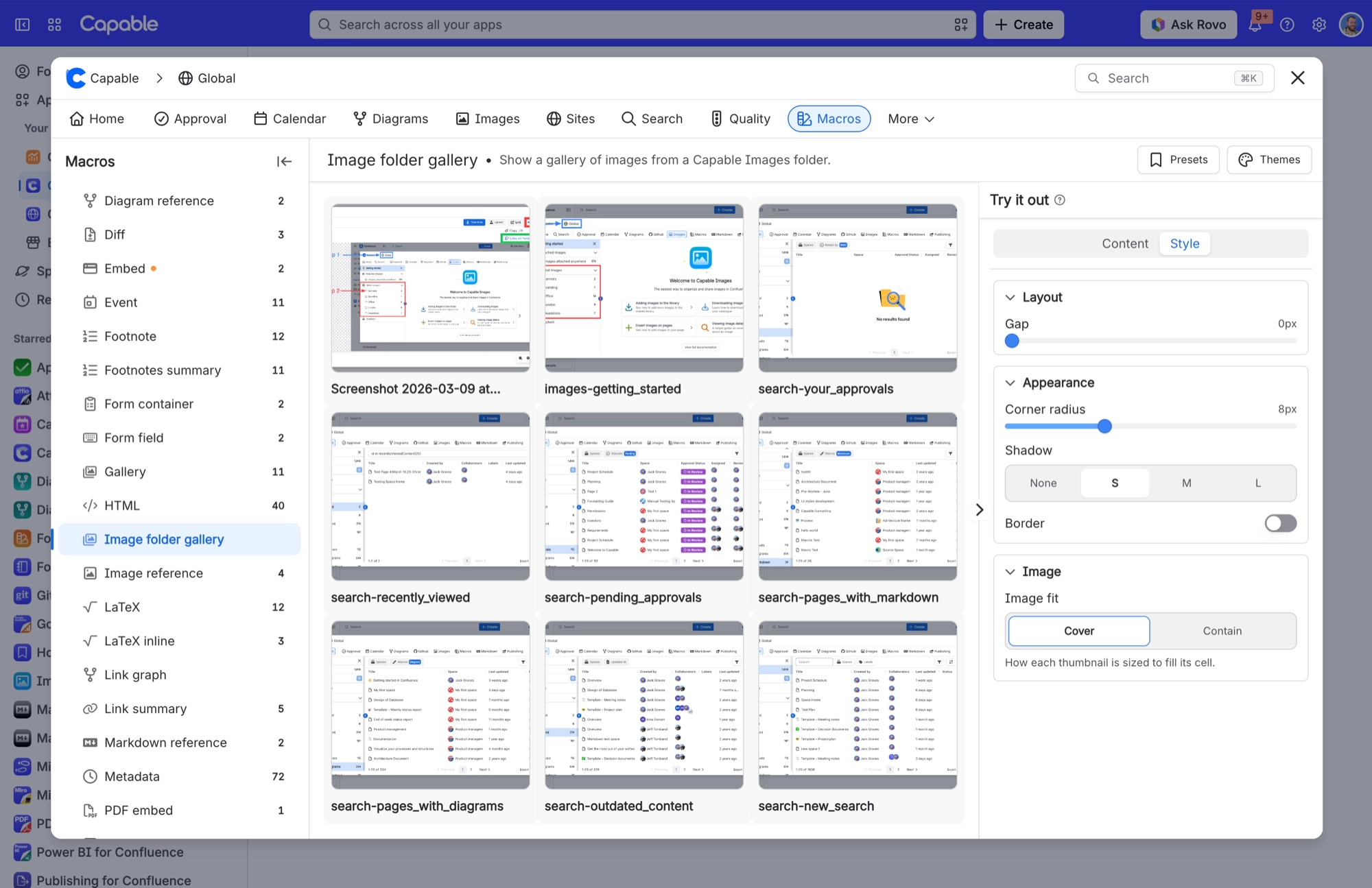

Image folder gallery macro with the Style tab open, showing Gap, Corner radius, Shadow, Border and Image fit settings
The Style tab is where Gap, Corner radius, Shadow and Border live. They only change a gallery that uses the Grid layout.

#Limits that apply here

Limit

Value

What happens

Images per page

25 images

A 'Show more' button loads the next 25 while more remain.

Recently added images

24 hours

Images added in the last 24 hours always appear, even if search has not caught up yet.

Minimum column width

200 px

With Columns set to Auto, each column stays at least this wide.

Found it? Good.
