PacketDiag

PacketDiag is similar to Bytefield, designed for making more detailed diagrams of network packet structures, which are helpful in networking documentation.

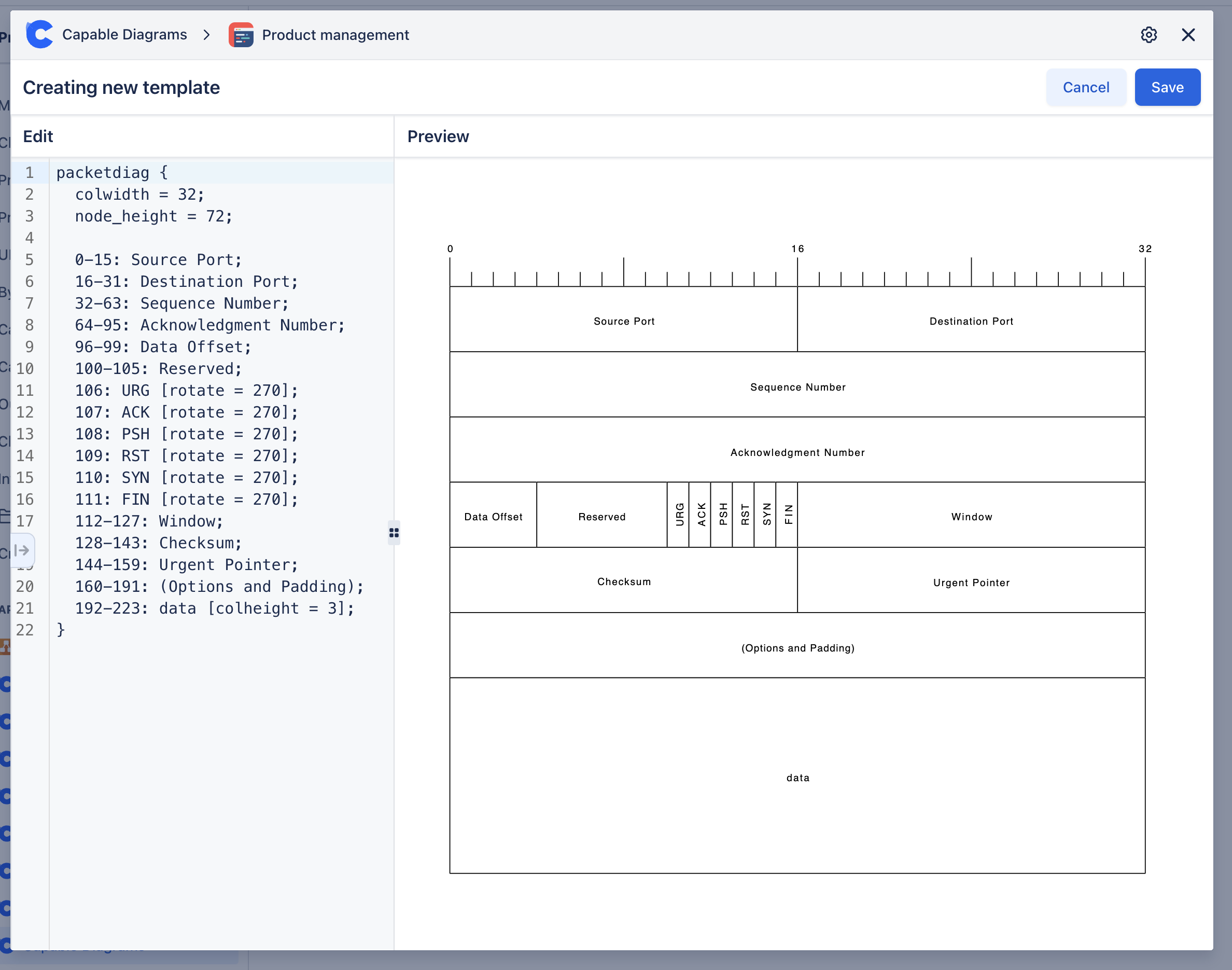

Screenshot 2024-10-22 at 15.08.29.png

PacketDiag Editor
