Migrate from Avono PlantUML for Confluence (Data Center to Cloud)

We support migrating from Avono PlantUML for Confluence into Capable for Confluence or Diagrams for Confluence using our migration tool, which is currently in beta.

Introduction

If you're currently using Avono PlantUML for Confluence Data Center and looking to move to Confluence Cloud, you're in the right place.

Our migration tool is designed to help you bring your existing PlantUML diagrams over with minimal effort and zero headaches. This guide will walk you through the process step-by-step so you can move fast and preserve your team's visual documentation.

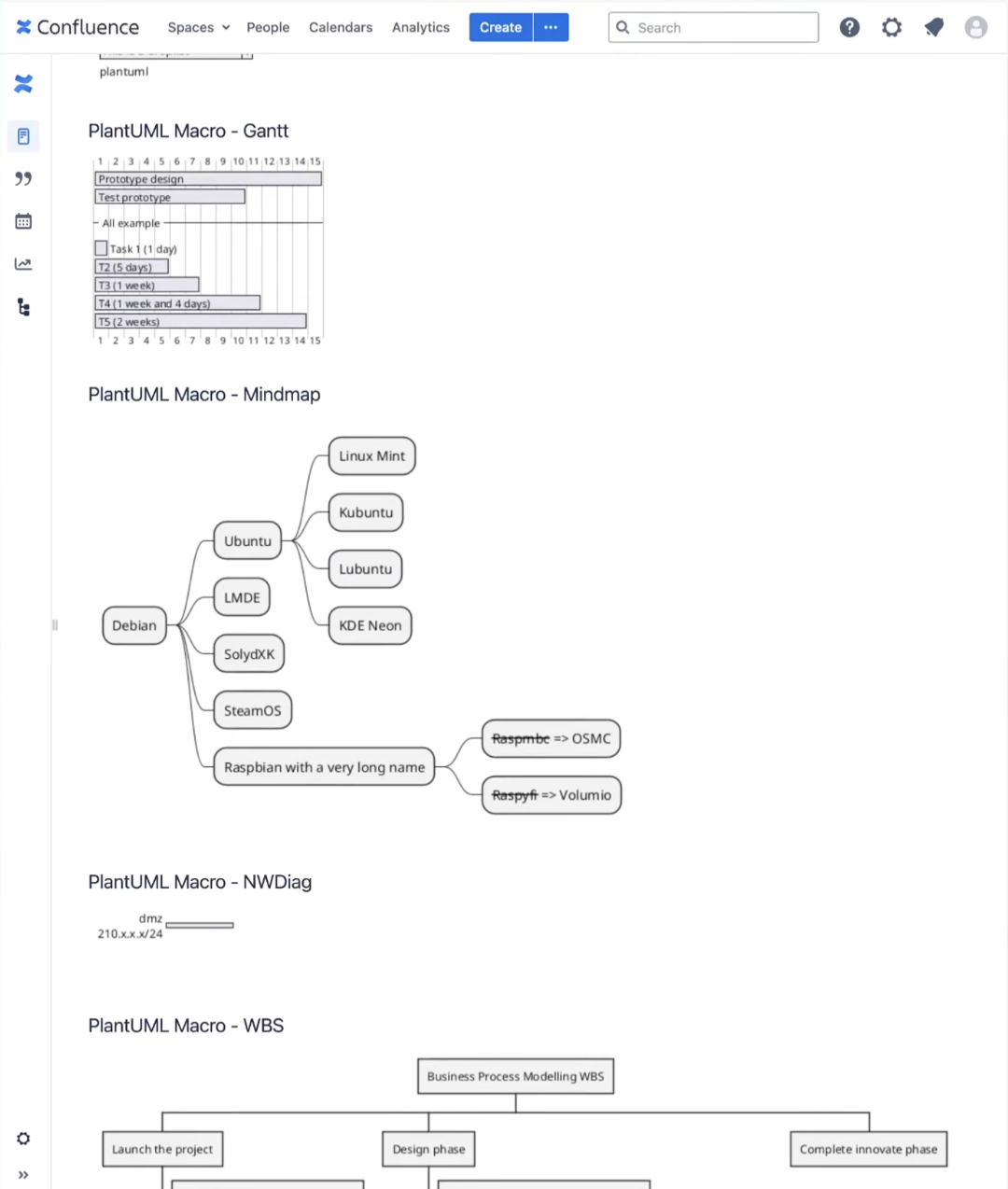

Screenshot 2025-07-03 at 16.18.03.png

Confluence Data Center


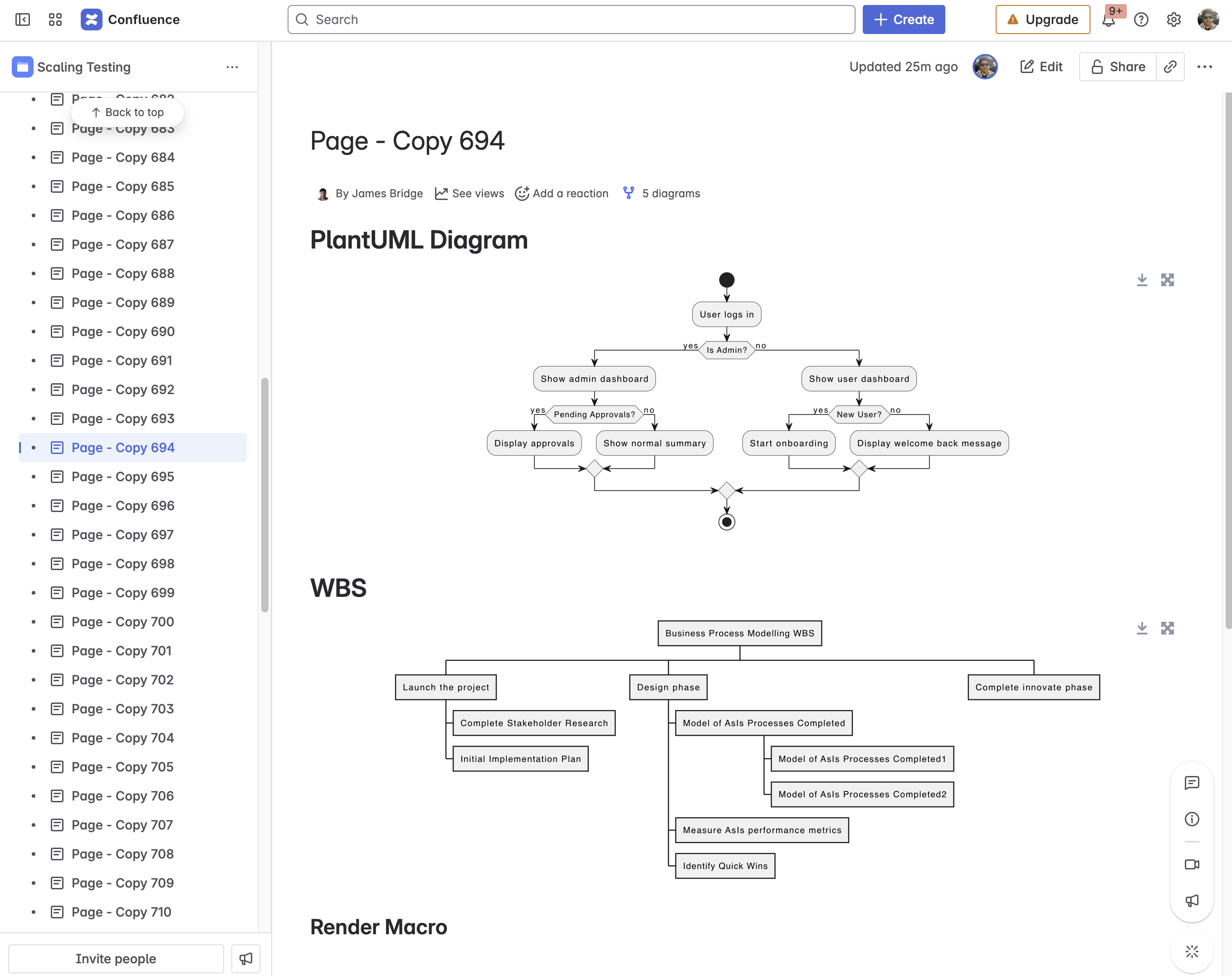

Confluence Cloud

What is supported?

Currently only macros on Confluence Pages are supported, not Blog Posts.

Macros

Macro

Support Level

plantuml

SUPPORTED

plantumlrender

SUPPORTED

flowchart

SUPPORTED

flowchartrender

SUPPORTED

linkgraph

NOT SUPPORTED

spacegraph

NOT SUPPORTED

Diagram Types

Diagram Type

Support Level

plantuml

SUPPORTED

wbs

SUPPORTED

nw

SUPPORTED

mindmap

SUPPORTED

gantt

SUPPORTED

salt

SUPPORTED

dot

SUPPORTED

json

SUPPORTED

latex

NOT SUPPORTED

math

NOT SUPPORTED

jcckit

NOT SUPPORTED

ditaa

NOT SUPPORTED

Notes

Some of the macros have options related to how they render the diagrams, like rounding, connector types, shape preferences and shadows - these are not supported.

We migrate:

  • The diagram type

  • The diagram code itself

  • The diagram title (if provided)

Pre-CCMA Steps

1. Determine whether your source data is compatible

First, to find out what macros are in use, you can either open the ‘Macro Usage’ page in the Confluence Administration, or run this SQL query:

Query

CODE
WITH matches AS (
  SELECT
    bodycontentid,
    unnest(ARRAY[
      CASE WHEN body ~* '<ac:structured-macro[^>]*ac:name="plantuml"' THEN 'plantuml' ELSE NULL END,
      CASE WHEN body ~* '<ac:structured-macro[^>]*ac:name="plantumlrender"' THEN 'plantumlrender' ELSE NULL END,
      CASE WHEN body ~* '<ac:structured-macro[^>]*ac:name="flowchart"' THEN 'flowchart' ELSE NULL END,
      CASE WHEN body ~* '<ac:structured-macro[^>]*ac:name="flowchartrender"' THEN 'flowchartrender' ELSE NULL END,
      CASE WHEN body ~* '<ac:structured-macro[^>]*ac:name="linkgraph"' THEN 'linkgraph' ELSE NULL END,
      CASE WHEN body ~* '<ac:structured-macro[^>]*ac:name="spacegraph"' THEN 'spacegraph' ELSE NULL END
    ]) AS macro_type
  FROM public.bodycontent
)
SELECT macro_type, COUNT(*) AS row_count
FROM matches
WHERE macro_type IS NOT NULL
GROUP BY macro_type
ORDER BY row_count DESC;

Output

macro_type

row_count

plantuml

512

plantumlrender

284

flowchart

173

flowchartrender

122

linkgraph

31

spacegraph

9

Next, we need to determine if there are any unsupported diagram types in use by the plantuml diagram macro to ensure they are compatible.

This query won’t find diagrams with the default plantuml type, but will detect the unsupported ones for you.

Query

CODE
SELECT matches.type_value, COUNT(*) AS count
FROM (
  SELECT
    regexp_matches(
      body,
      '<ac:parameter ac:name="type">(ditaa|wbs|dot|gantt|nw|salt|jcckit|mindmap|json|latex|math)</ac:parameter>',
      'gi'
    ) AS match_array
  FROM public.bodycontent
) AS sub,
LATERAL (
  SELECT match_array[1] AS type_value
) AS matches
GROUP BY matches.type_value
ORDER BY count DESC;

Output

diagram_type

count

mindmap

16

wbs

12

json

5

gantt

3

nw

3

dot

2

salt

1

ditaa

0

jcckit

0

latex

0

math

0

2. Migrate the data to Confluence Cloud

Use the Confluence Cloud Migration Assistant (CCMA) to migrate your Spaces and Pages to Confluence Cloud, then follow the step-by-step below.

Do not edit pages in Confluence Cloud before you run the migrator or the diagram data may be removed, preventing us from migrating the data (this is due to it being in a legacy format).

Post CCMA Steps

Migration is a complex process:

  • Always do a test run of the migration on a copy of the space and verify it’s success.

  • Always make a backup before performing a migration.

1. Ensure that the current account has full read/write access on all pages

The migrator runs as your current account, therefore you must ensure that your user account has full read and write priveledges on the spaces and pages that you intend to migrate.

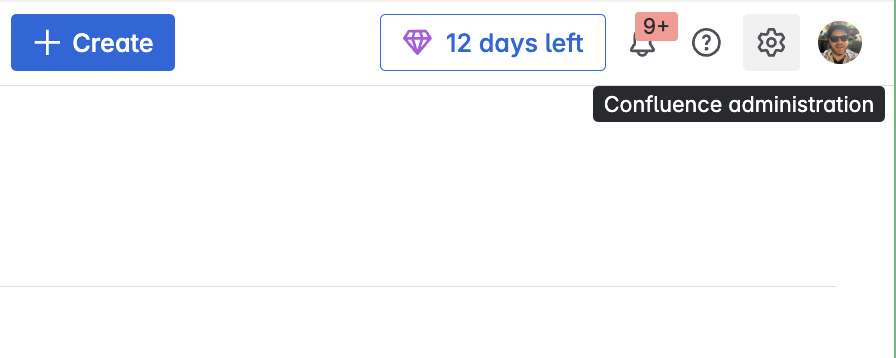

2. Open the Confluence Administration page from the top-right

Screenshot 2025-07-03 at 15.35.13.png

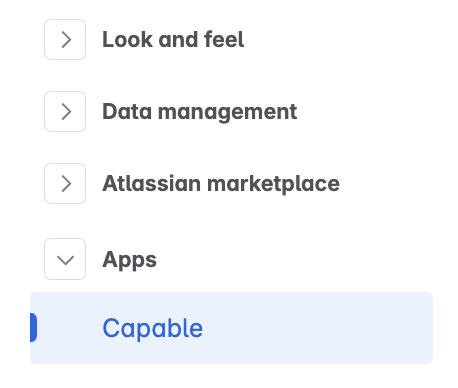

3. Click on Apps → Capable from the left sidepanel

Screenshot 2025-07-03 at 15.36.14.png

4. Click on the ‘Migration’ tab, select Avono

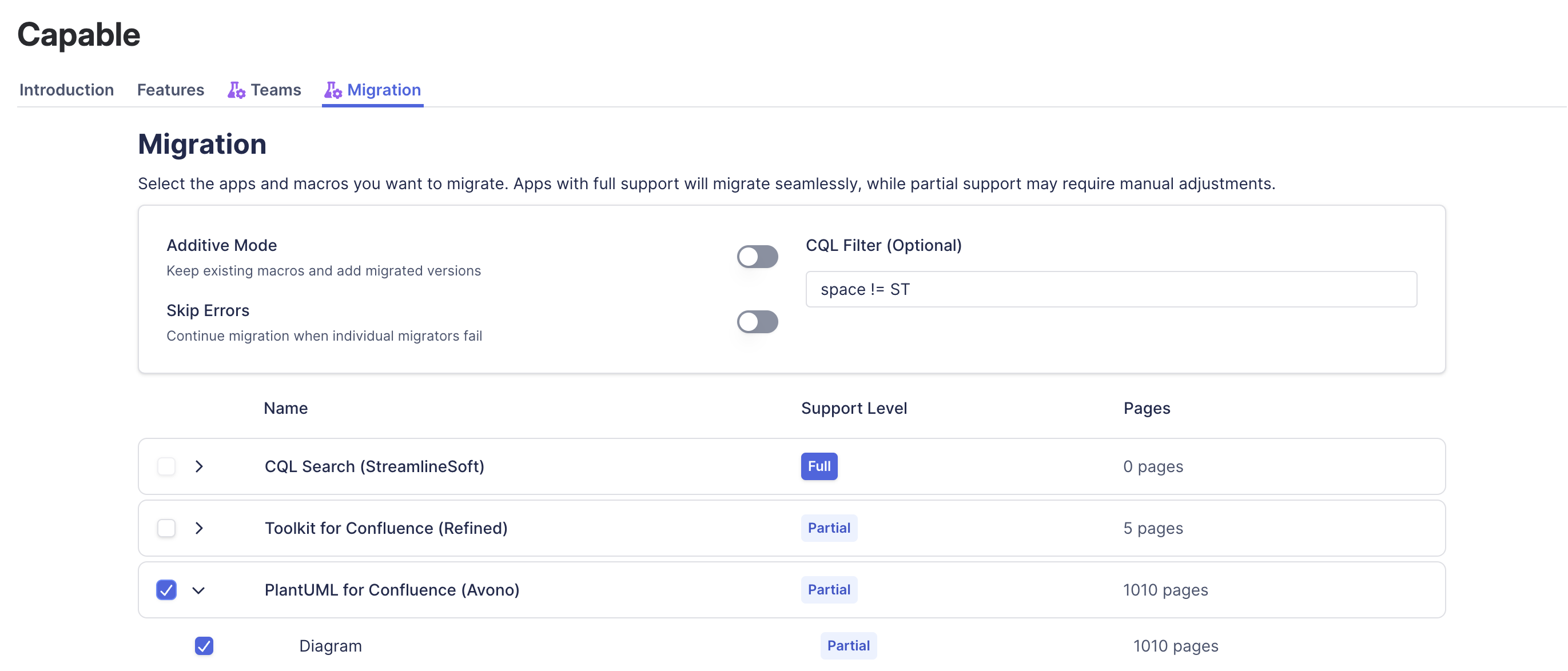

You can change the scope of the migration by using the CQL filter in the options panel.


5. Run a validation


6. Click ‘Start Migration’ to start the migration

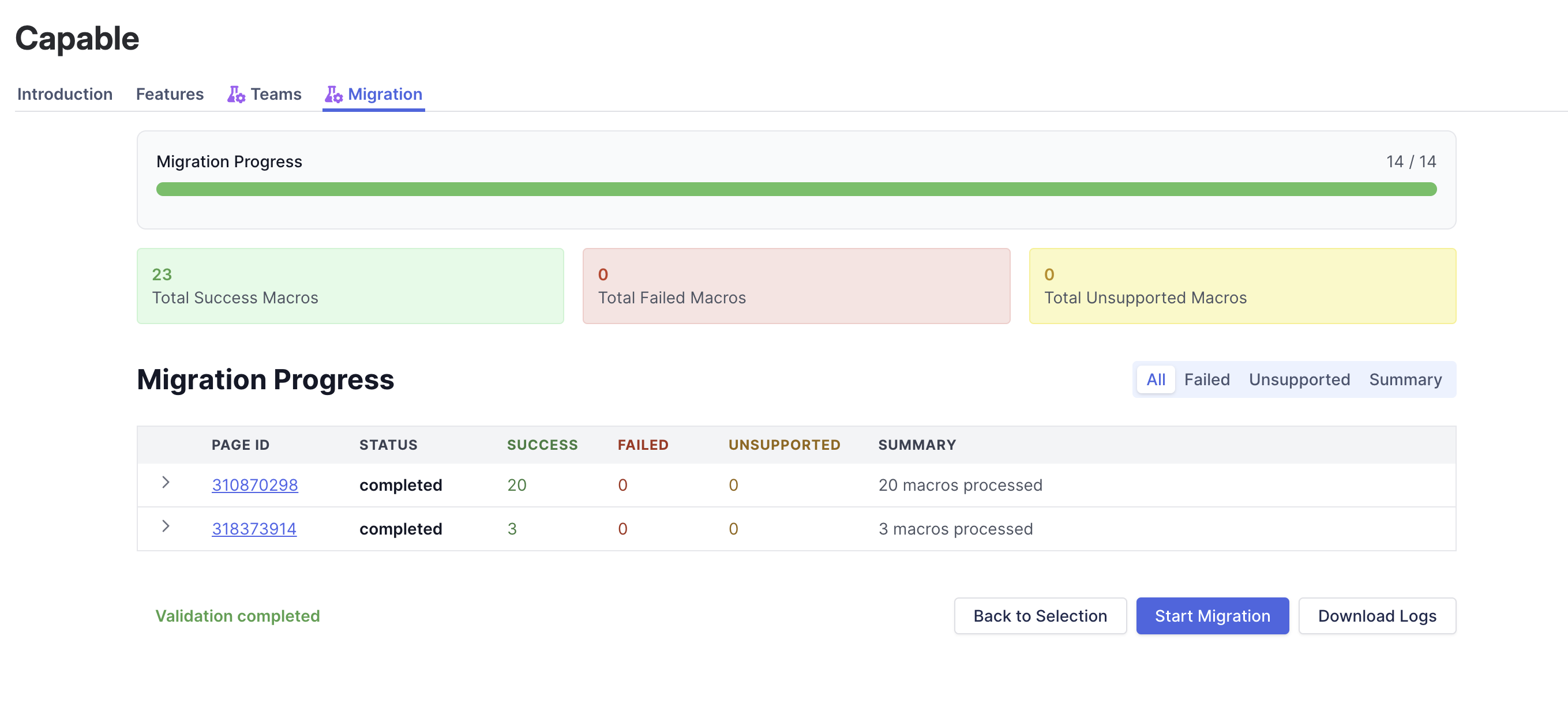

During migration, you will see a log of the operations being performed.

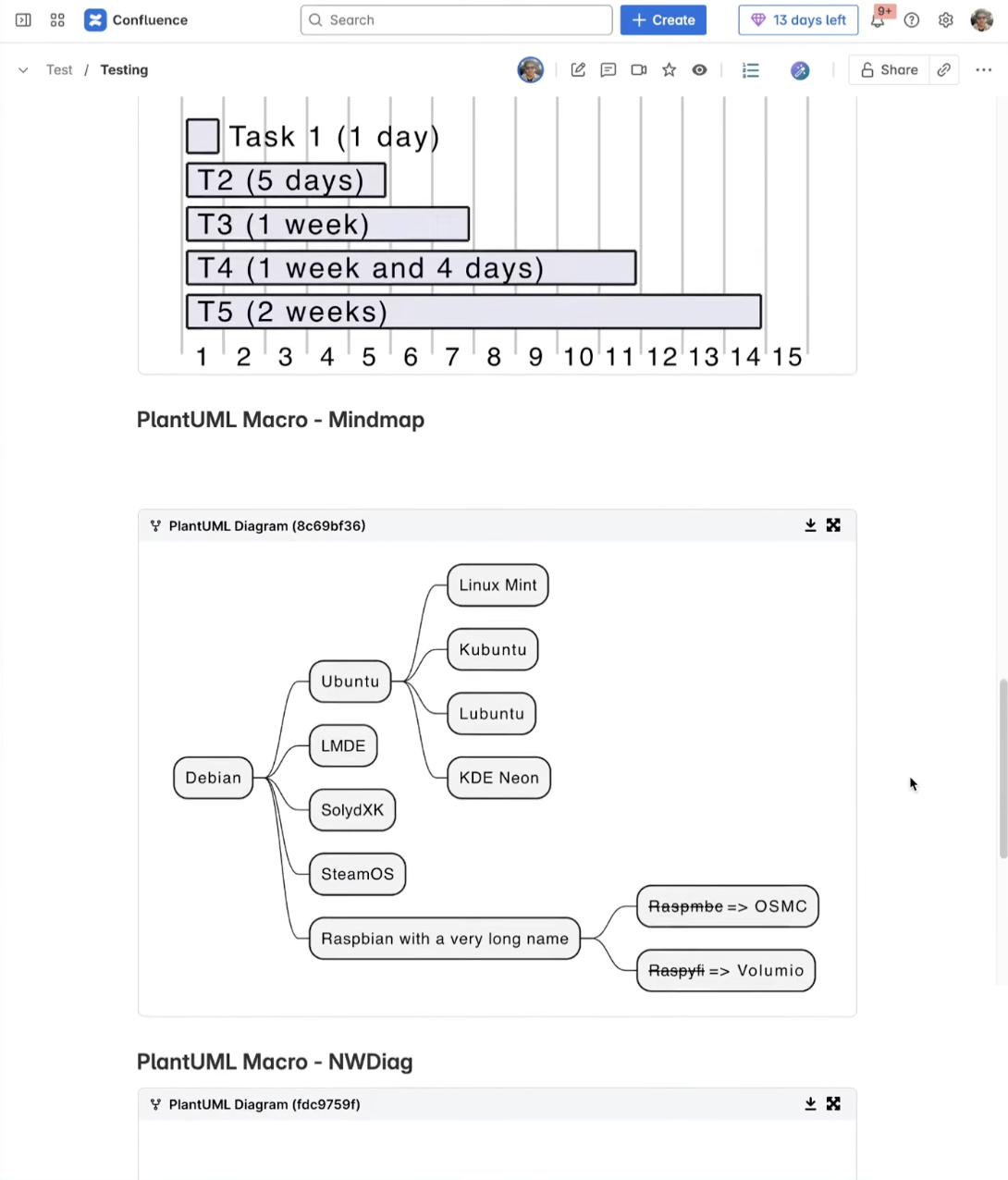

7. Your diagrams are now migrated!
