SeqDiag

SeqDiag generates sequence diagrams, which illustrate interactions among processes or objects over time, commonly used in software engineering for system modeling.

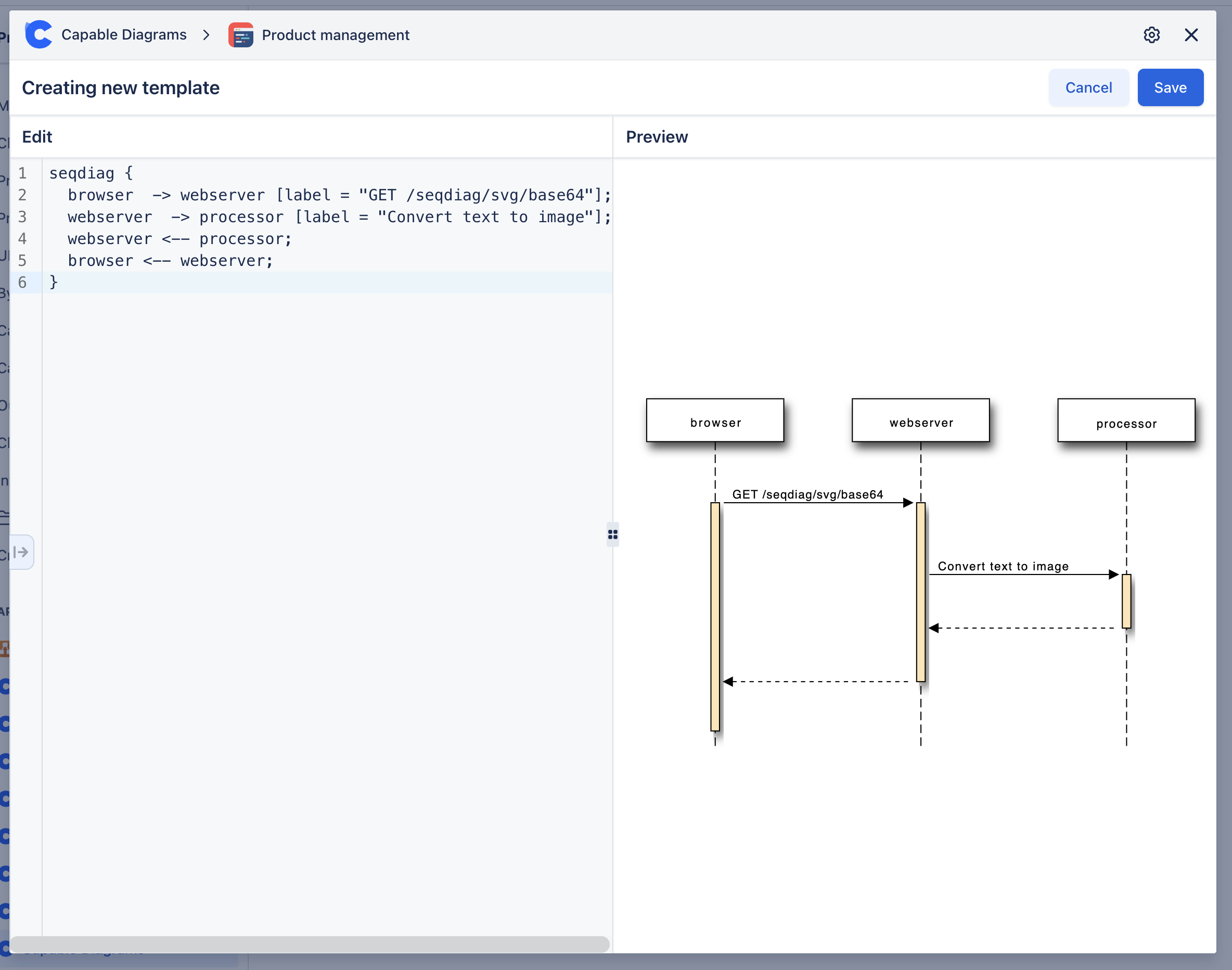

SeqDiag Editor
